【 FPGA 】Zynq-7000 SoC

목차

Xilinx Adaptive SoCs

https://www.xilinx.com/products/silicon-devices/soc.html

Zynq-7000 Devices

https://www.xilinx.com/products/silicon-devices/soc/zynq-7000.html

 Product Selection Guide

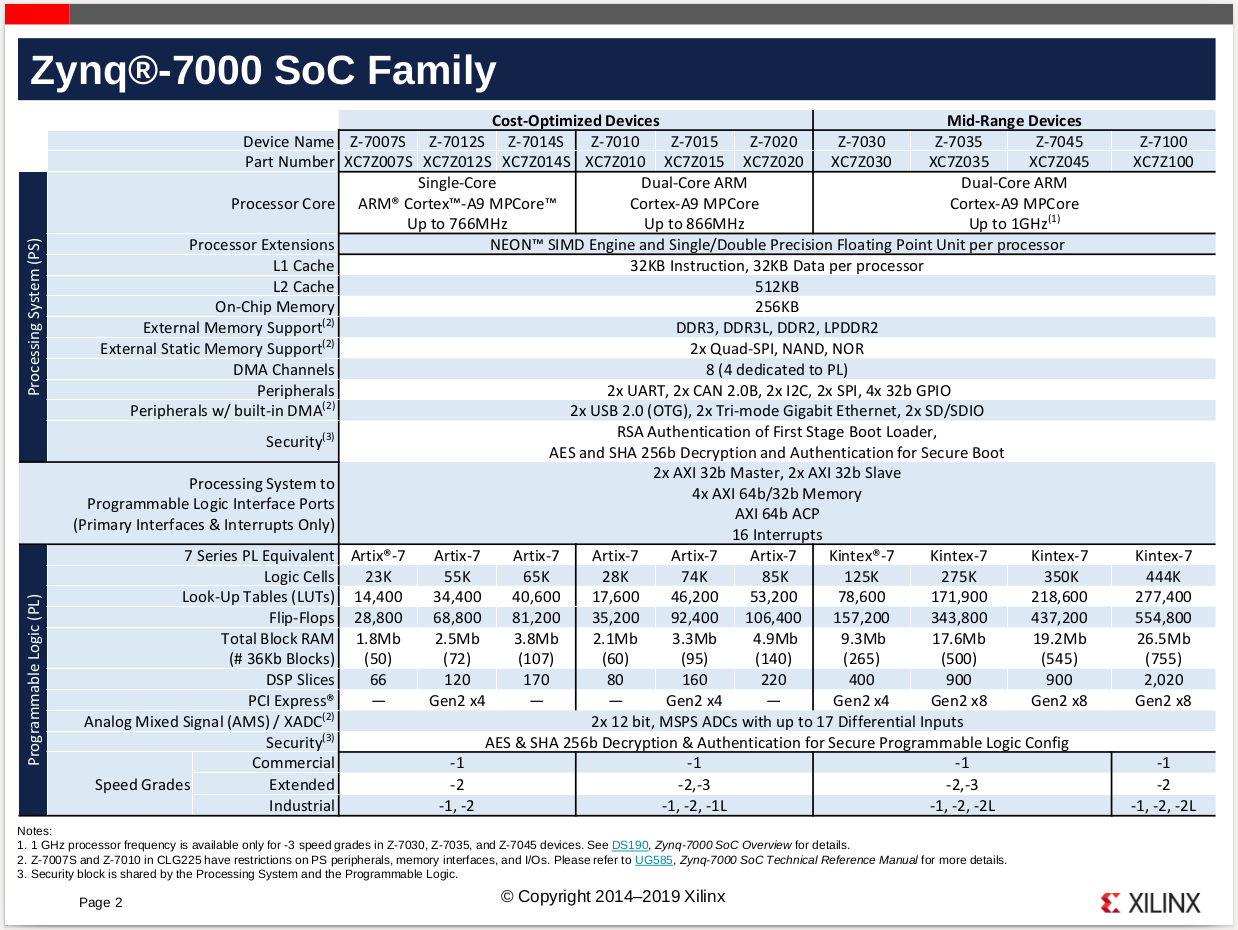

 SoC Family



 HR I/O, HP I/O, PS I/O, and Transceivers (GTP or GTX)



 Device Footprint Compatibility

 HR I/O, PS I/O, and GTP Transceivers



 Family Speed Grades

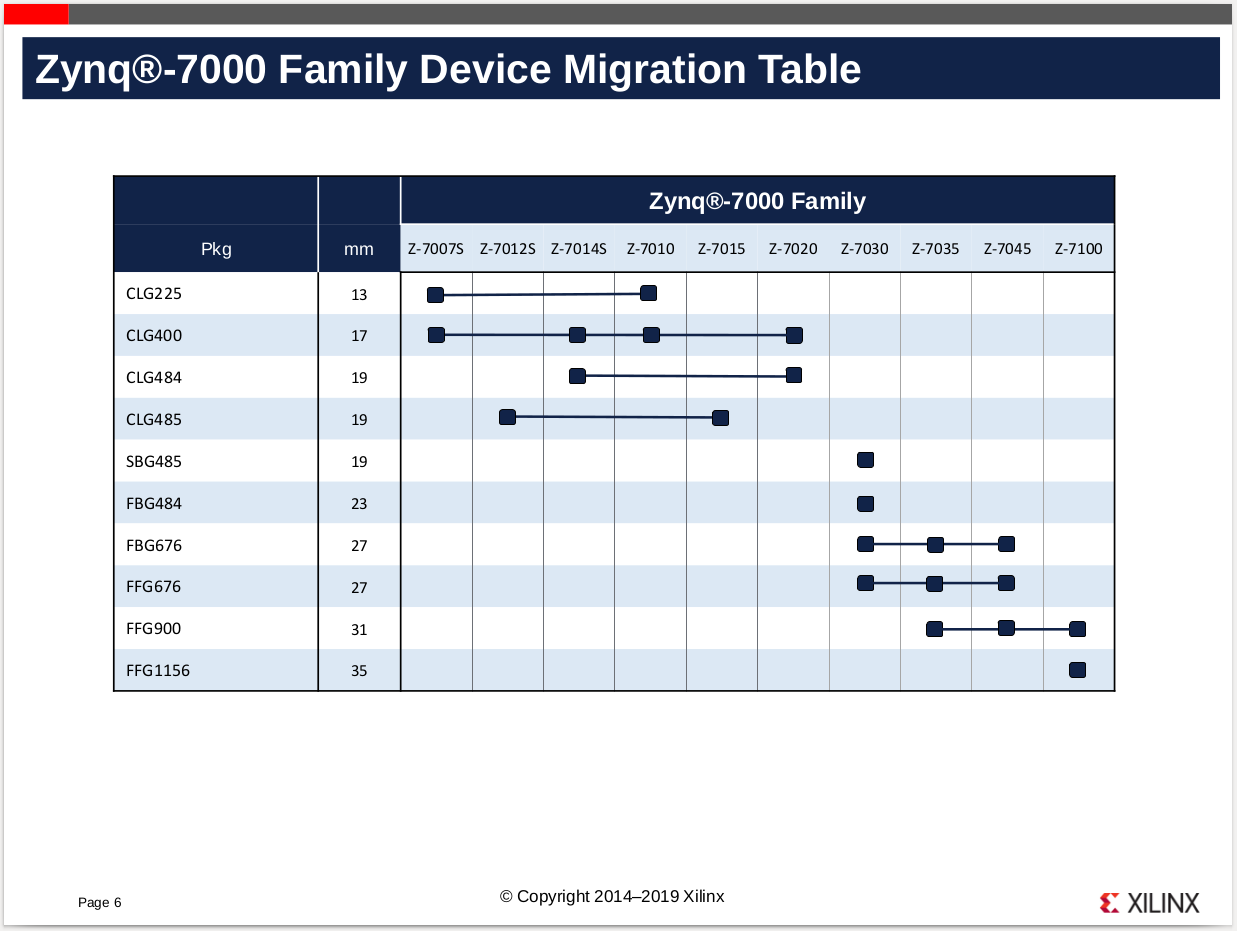

 Family Device Migration Table

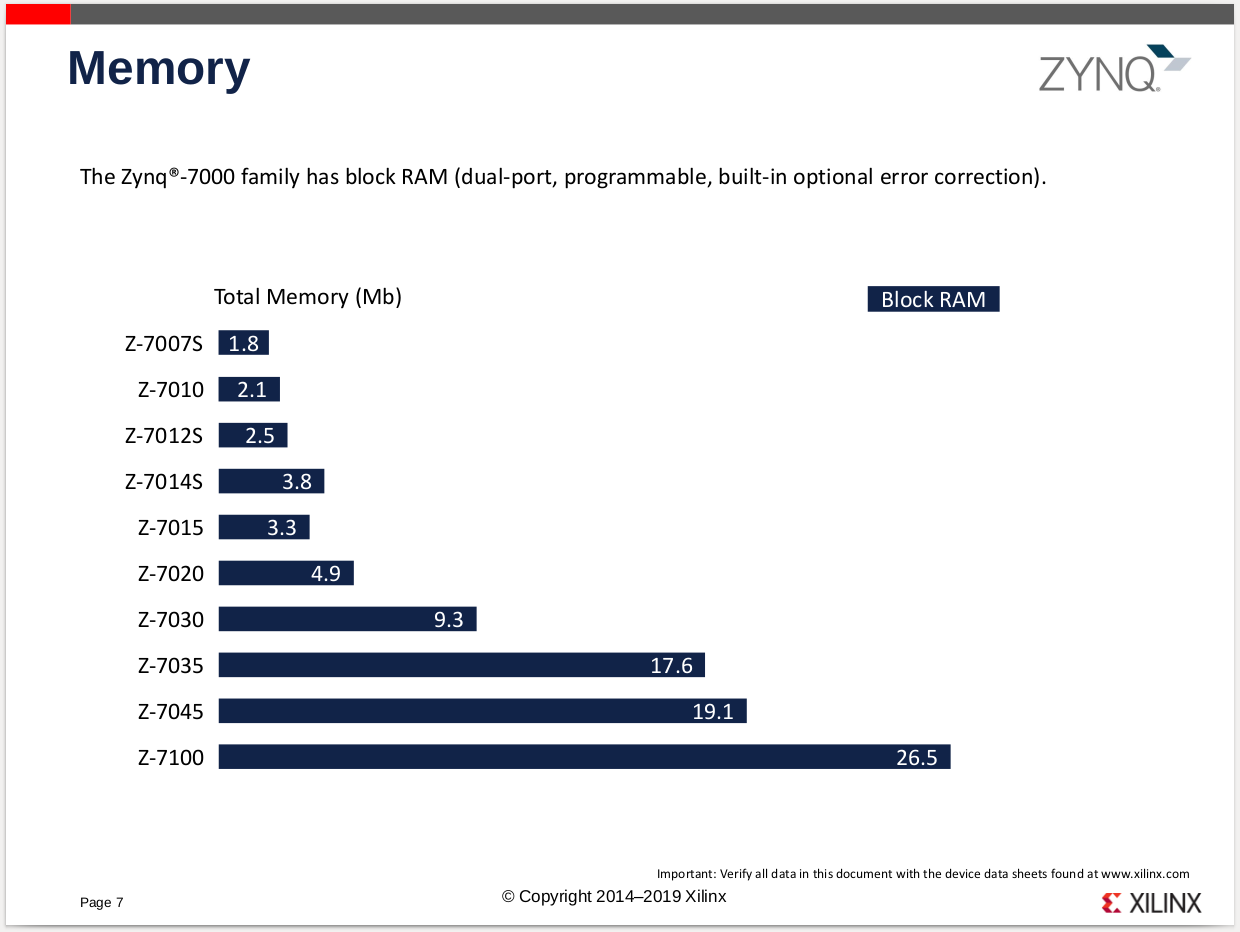

 Memory

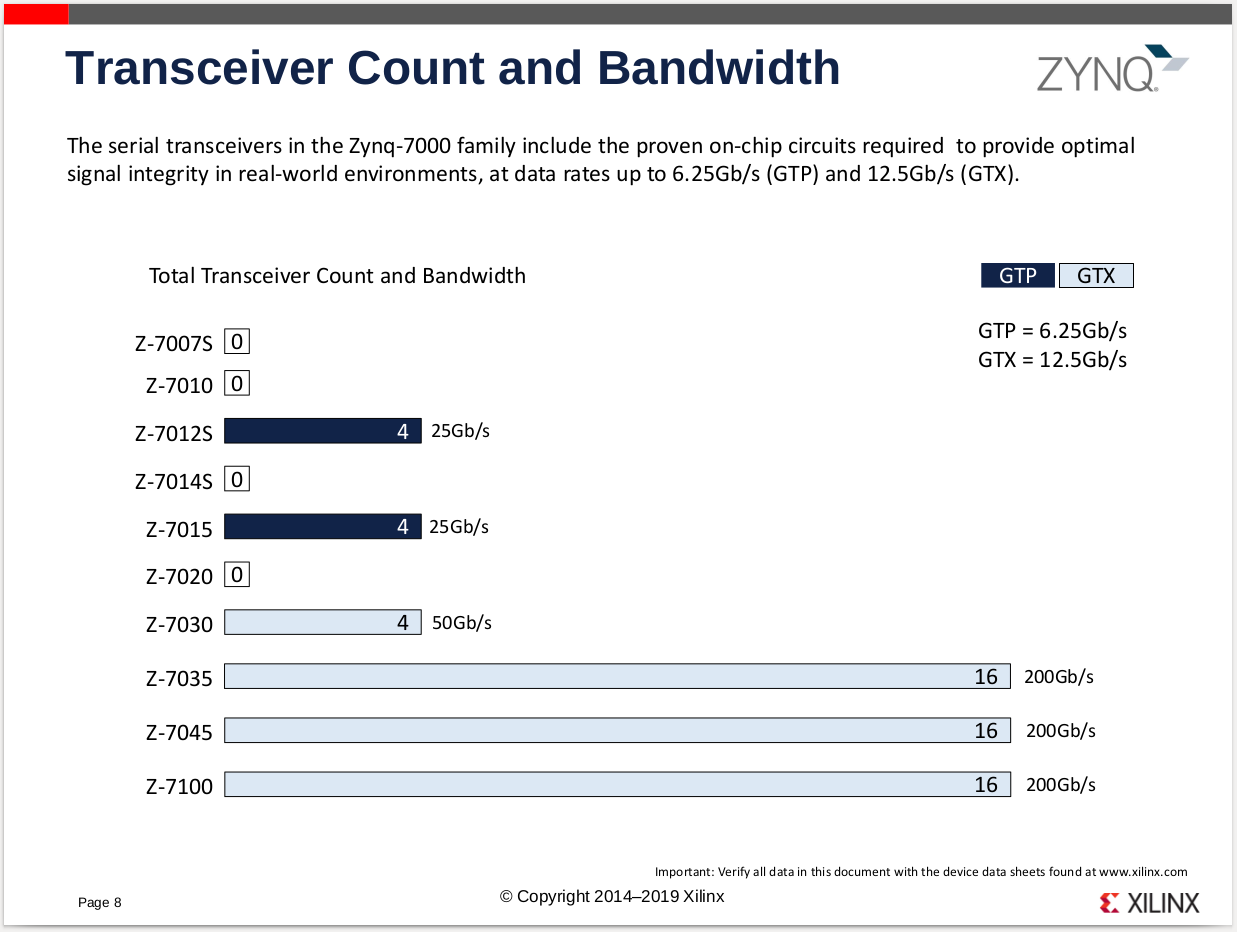

 Transceiver Count and Bandwidth



 I/O Count

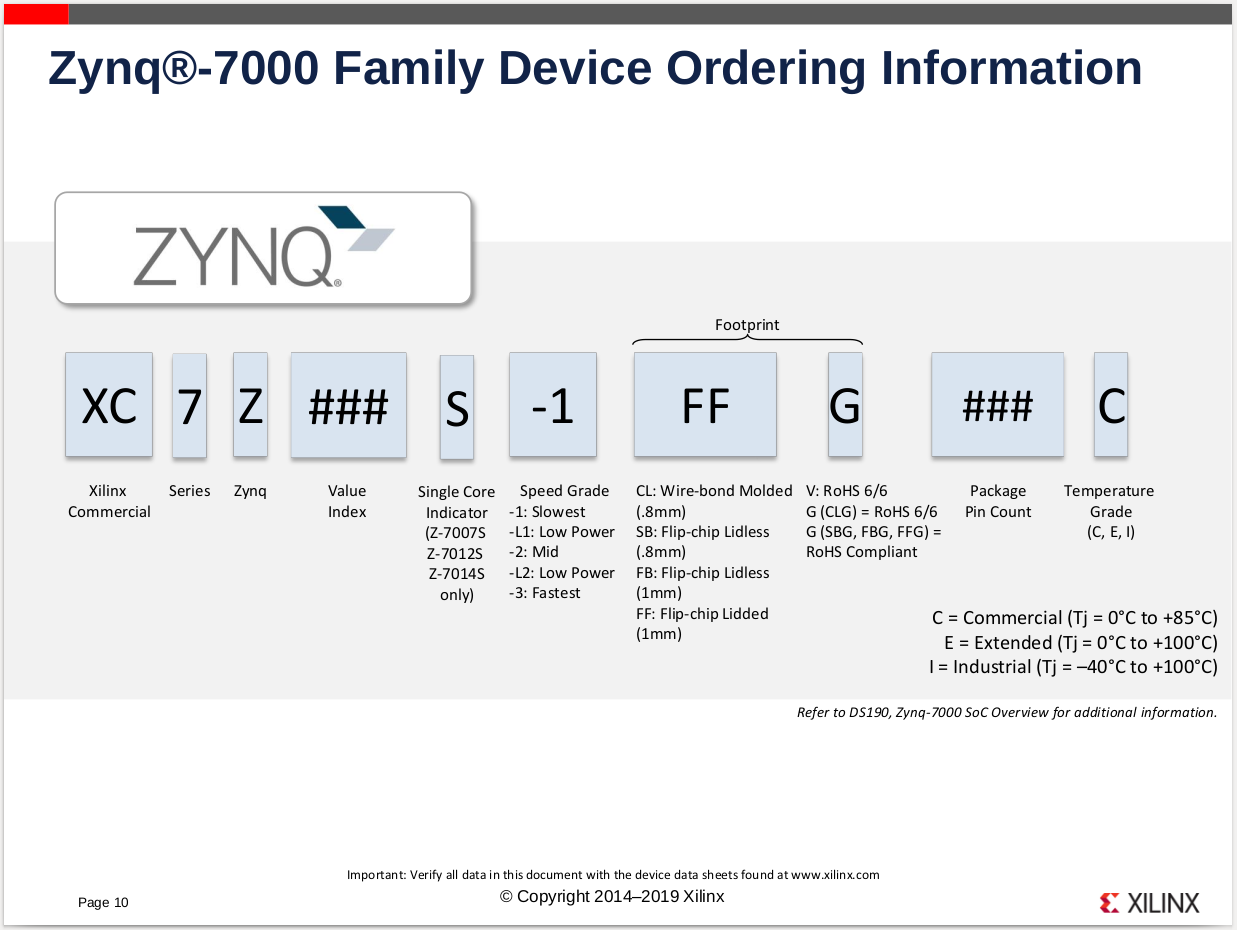

 Family Device Ordering Information

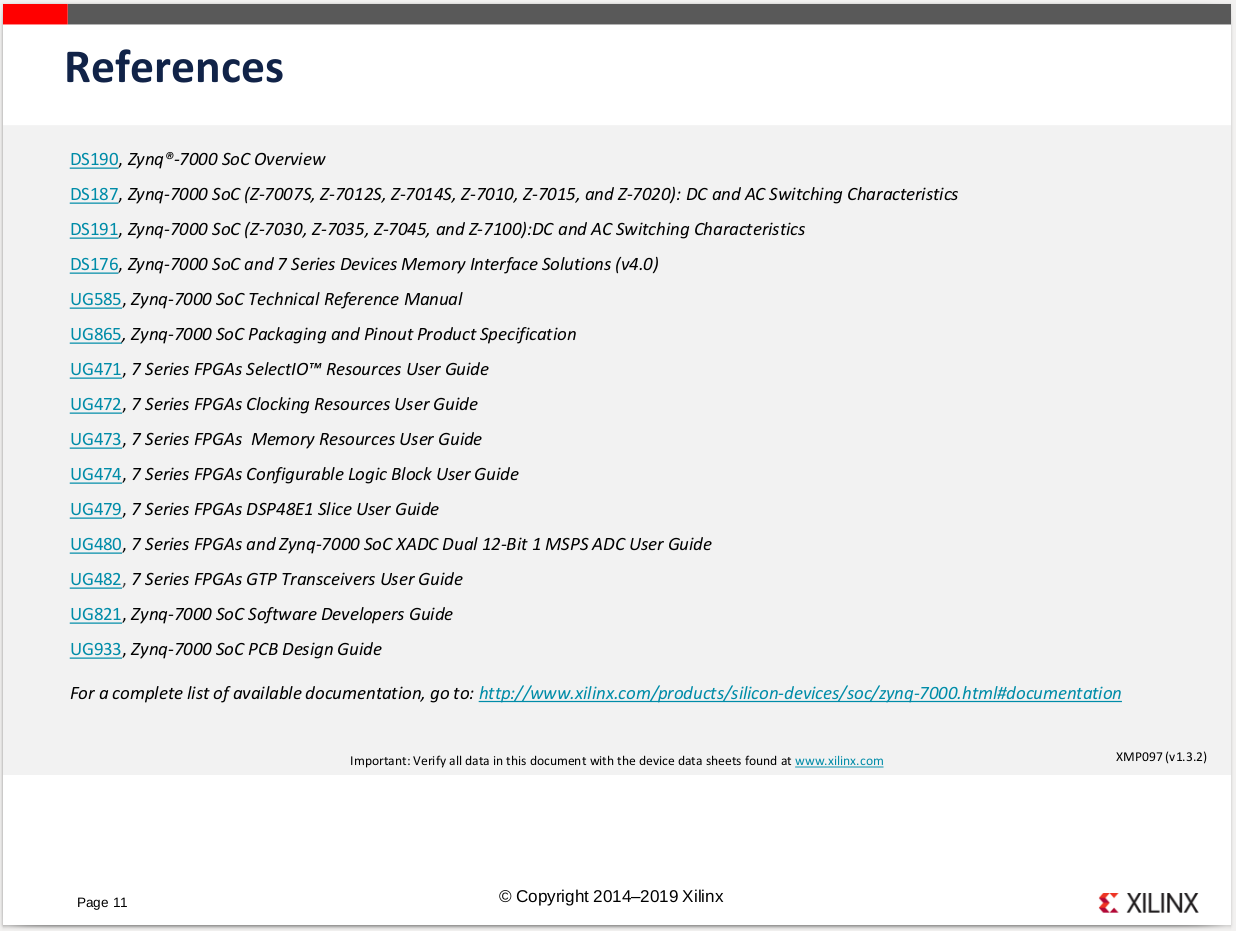

 References

Zynq®-7000 SoC Overview

http://www.xilinx.com/support/documentation/data_sheets/ds190-Zynq-7000-Overview.pdf

Zynq-7000 SoC DC and AC Switching Characteristics

(Z-7007S, Z-7012S, Z-7014S, Z-7010, Z-7015, and Z-7020)

http://www.xilinx.com/support/documentation/data_sheets/ds187-XC7Z010-XC7Z020-Data-Sheet.pdf

(Z-7030, Z-7035, Z-7045, and Z-7100)

http://www.xilinx.com/support/documentation/data_sheets/ds187-XC7Z010-XC7Z020-Data-Sheet.pdf

Zynq-7000 SoC and 7 Series Devices Memory Interface Solutions (v4.0)

http://www.xilinx.com/support/documentation/ip_documentation/mig_7series/v4_0/ds176_7Series_MIS.pdf

Zynq-7000 SoC Technical Reference Manual

http://www.xilinx.com/support/documentation/user_guides/ug585-Zynq-7000-TRM.pdf

Zynq-7000 SoC Packaging and Pinout Product Specification

http://www.xilinx.com/support/documentation/user_guides/ug865-Zynq-7000-Pkg-Pinout.pdf

7 Series FPGAs SelectIOTM Resources User Guide

http://www.xilinx.com/support/documentation/user_guides/ug471_7Series_SelectIO.pdf

7 Series FPGAs Clocking Resources User Guide

http://www.xilinx.com/support/documentation/user_guides/ug472_7Series_Clocking.pdf

7 Series FPGAs Memory Resources User Guide

http://www.xilinx.com/support/documentation/user_guides/ug473_7Series_Memory_Resources.pdf

7 Series FPGAs Configurable Logic Block User Guide

http://www.xilinx.com/support/documentation/user_guides/ug474_7Series_CLB.pdf

7 Series FPGAs DSP48E1 Slice User Guide

http://www.xilinx.com/support/documentation/user_guides/ug479_7Series_DSP48E1.pdf

7 Series FPGAs and Zynq-7000 SoC XADC Dual 12-Bit 1 MSPS ADC User Guide

http://www.xilinx.com/support/documentation/user_guides/ug480_7Series_XADC.pdf

7 Series FPGAs GTP Transceivers User Guide

http://www.xilinx.com/support/documentation/user_guides/ug482_7Series_GTP_Transceivers.pdf

Zynq-7000 SoC Software Developers Guide

http://www.xilinx.com/support/documentation/user_guides/ug821-zynq-7000-swdev.pdf

Zynq-7000 SoC PCB Design Guide

http://www.xilinx.com/support/documentation/user_guides/ug933-Zynq-7000-PCB.pdf

For a complete list of available documentation, go to: http://www.xilinx.com/products/silicon-devices/soc/zynq-7000.html#documentation
